Dimensions (HxWxD)39mm x 200mm x 202mmPower supplyStandard 110/220 V AC plugPower consumptionOperational: 50W (max)
Standby: <8W (networked standby), < 0.5W (deep standby mode)Weight900 gr
General specifications
Operating systemWindows 10 or higher macOS 11 (BigSur) and higher
Android v11 and higher (ClickShare App)
iOS 14 and higher (ClickShare App)System requirementsFor a smooth experience with Microsoft Teams or Zoom
Minimum: Intel i3 dual-core processor / 8GB RAM / OS : Windows 10 latest build or Mojave latest build
Recommended: Intel i5 4-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS latest buildVideo outputs4K UHD (3840*2160) @ 30Hz. HDMI 1.4bVideo inputs1920x1080 @30Hz. HDMI 1.4bAudio outputUSB, SPDIF, jack, HDMIConnections1x Ethernet LAN 1Gbit

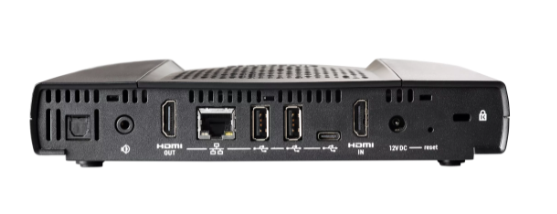

1x USB-C 2.0 (back); 2x USB-A 2.0 (back); 1x USB -A 2.0 (front)
Audio analog line out on mini jack socket (3.5mm), digital S/PDIFClickShare Buttons2ClickShare AppDesktop & MobileNative protocols
Airplay, Google Cast, Miracast
Maximum number of simultaneous connections (with Buttons and/or App)32Noise LevelMax. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°CAuthentication protocolWPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration modeWireless transmission protocolIEEE 802.11 a/g/n/ac and IEEE 802.15.1ReachMax. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz (DFS)Frequency band2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)Temperature rangeOperating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)HumidityStorage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensingAnti-theft systemKensington lockCertificationsFCC/CETouch screen support & InteractivityYesWireless conferencingvia App or ButtonLocal viewHigh qualityNetwork connectionLAN & WiFi (dual)Management and reportingYesWarranty1 year standard. 5 years coverage via SmartCare
